500w Ultra Cutting 40Khz Transducer With Capacitor Range From 5100pf To 7500pf

Brand Name : QRsonic

Model Number : QR-3040-4BZ

Certification : CE

Place of Origin : China

MOQ : 1 pcs

Price : Negotation

Payment Terms : T/T, Western Union

Supply Ability : 2000pcs per month

Delivery Time : 3 workdays

Packaging Details : Packed in carton

Products Name : Ultrasonic Cutting Transducer

Frequency : 40 khz

Output power : 500 watt

Joint bolt : M10

Ceramic disc Diameter : 30mm

Ceramic discs : PZT8

Capacitance : 5.1-7.5nf

Amplitude : 4um

Contact Now

500w Ultra Cutting 40Khz Transducer with Capacitor Range from 5100pf to 7500pf

Description:

Ultrasonic transducers are currently mainly used in ultrasonic mask machines, ultrasonic plastic welding machines, ultrasonic metal welding machines, ultrasonic cleaning machines, gas cameras, trichlorine machines and other equipment.

The structure of the ultrasonic transducer includes the shell degree, the matching layer that is the acoustic window, the piezoelectric ceramic disc transducer, the backing, and the lead-out cable. The piezoelectric wafer is an important part of the transducer. The vibration of the piezoelectric wafer The frequency is the operating frequency of the device, and the frequency mainly depends on the thickness of the wafer and the propagation speed of the ultrasonic wave in the wafer material.

Specifications:

Model QR-3040-4BZ
Frequency 40khz
Output power 500 watt
Joint bolt M10
Ceramic disc Diameter 30mm
Qty of ceramic discs 4pcs
Capacitance 5.1-7.5nf
Amplitude 4 um
Application Plastic welding machine

Parameters:

The columnar type NTK TYPE

Item No.

Connect screw

Ceramic dia (mm)

 Qty of Ceramic (pc)

Frequency (khz)

 Capacitance

power (W)
Yellow Grey Black
7015-4BZ M20 X 1.5 70 4 15 12500-14000 17000-19000 2600
6015-4BZ M20 X 1.5 60 4 15 8000-10000 10000-12000 12500-13500 2200
6015-6BZ M20 X 1.5 60 6 15 14000-16000 19500-21000 2600
5015-4BZ M18 X 1.5 50 4 15 12000-13000 13000-14300 15000-17000 1500
4015-4BZ M16 X 1 40 4 15 10000-11000 10500-11500 700
5520-4BZ M18 X 1 55 4 20 10000-11000 10500-11500 14300-20000 2000
5020-6BZ M18 X 1.5 50 6 20 18500-20000 22500-25000 2000
5020-4BZ M18 X 1.5 50 4 20 11000-13000 13000-15000 15000-17000 1500
5020-2BZ M18 X 1.5 50 2 20 6000-6500 6500-7000 8000-9000 800
5020-4CZ M18 X 1.5 50 4 20 11000-12000 13000-14000 14500-16000 1500
5020-4HZ M18 X 1.5 50 4 20 11000-12000 1500
5020-4BL M18 X 1.5 50 4 20 11000-12500 1500
4020-4BZ 1/2-20UNF 40 4 20 9000-10000 9500-11000 900
4020-2BZ 1/2-20UNF 40 2 20 4800-5500 500
3820-4BZ 1/2-20UNF 38 4 20 6500-7500 800
The columnar type NTK TYPE

Item No.

Connect screw

Ceramic dia (mm)

 Qty of Ceramic (pc)

Frequency (khz)

 Capacitance

power (W)
Yellow Grey Black
5025-2BZ M12 X 1 50 2 25 5000-5600 7000-8000 500
3828-2BZ 1/2-20UNF 38 2 28 3800-4300 500
3828-4BZ 1/2-20UNF 38 4 28 7600-8500 10500-12000 800
3028-2BZ 3/8-24UNF 30 2 28 2700-3100 3400-3800 400
3028-4BZ M10*1 30 4 28 6000-7000 700
2528-4FZ M8 X 1 25 4 28 3900-4300 400
2528-2FZ M8 X 1 25 2 28 1950-2200 2200-2500 300
3030-4BZ M10 30 4 30 6200-6900 700
3035-2FZ 3/8-24UNF 30 2 35 2700-3100 500
3035-4BZ M10 X 1 30 4 35 5000-6200 800
2535-2FZ M8 X 1 25 2 35 1900-2200 400
2540-2BZ 3/8-24UNF 25 2 40 2000-2300 500
3040-4BZ M10 30 4 40 5500-6200 1000
3050-4BZ M8 30 4 50 5500-6200 600
1560-2BZ M6 X 0.75 15 2 60 700-800 100

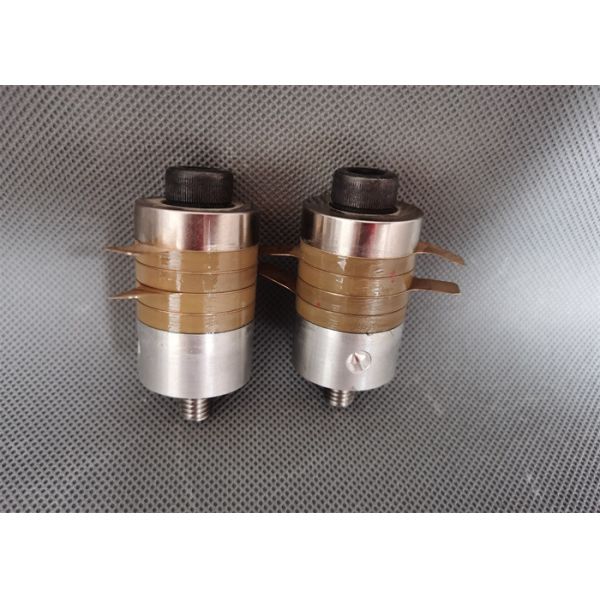

500w Ultra Cutting 40Khz Transducer with Capacitor Range from 5100pf to 7500pf

500w Ultra Cutting 40Khz Transducer With Capacitor Range From 5100pf To 7500pf

500w Ultra Cutting 40Khz Transducer With Capacitor Range From 5100pf To 7500pf
